Solid Waste Shredder

01 — Project introduction

Unique Structure with High Output

High yield and fine chip size

High-speed One-shaft shredding

Multiple mechanical and electrical protection

Excellent performance in RDF production

This heavy-duty industrial waste shredder is infused with Polytec’s most reliable shredding technologies. With unique designs to rotor, chamber and control system, you are sure to enjoy high capacity and fine size control.

For downsizing commercial and industrial waste, this solid waste shredder produces up to 15 tons per hour with a particle size of 40-60mm. There is only one purpose of.

02 —Waste Shredder Applications

Unbaled and baled waste: plastic bottles, plastic films, leather, fabrics, textiles, sponge and cardboard.

Industrial solid waste and waste from production.

Alternative energy production.

Preliminary treatment of RDF (refuse derived fuel), SRF (solid recovered fuel) and TDF (tire derived fuel).

Fine treatment of MSW (municipal solid waste),  urban waste, sorted trash and garbage.

03 — Shredder Machine Features:

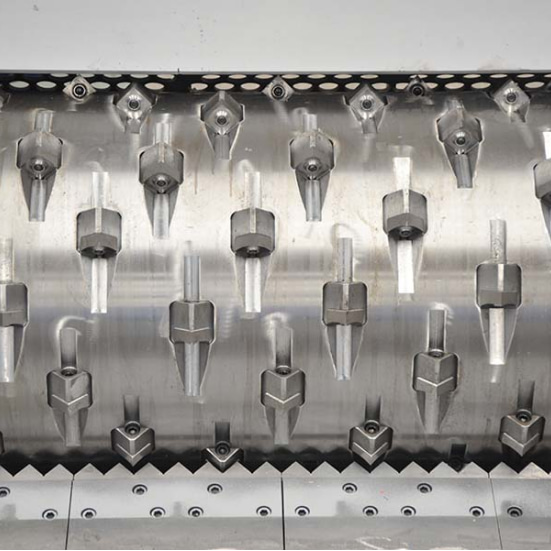

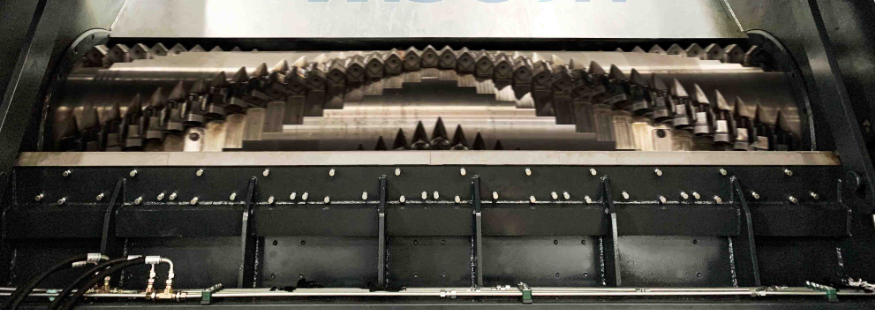

Rotor:

V-shape cutting blades, ensuring maximum cuts per revolution.

Enlarged blades can be turned for dual use and replacement.

Diameter enlarges for torsion and shock resistance.

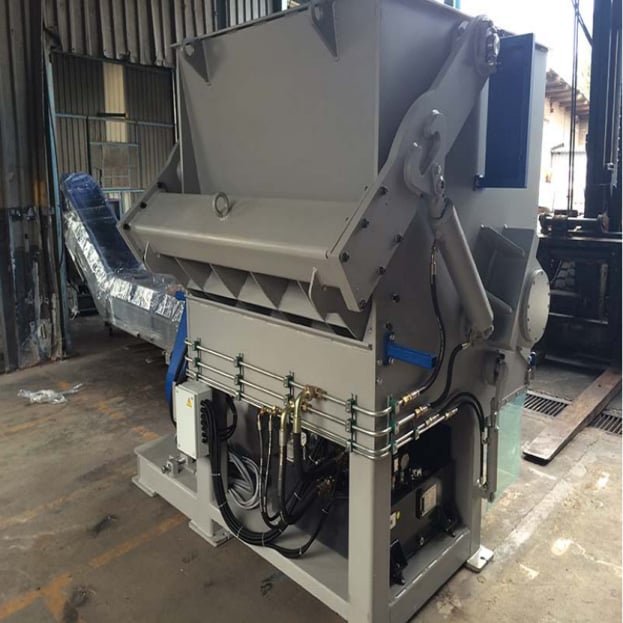

Swing Arm:

Swing arm runs in curve.

Curve hopper allows materials to enter easily.

Works in conjunction with workload and material characteristics.

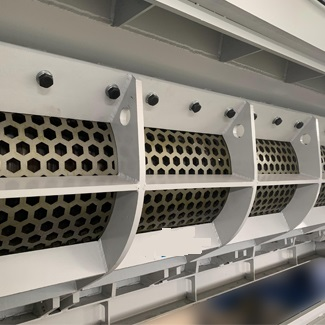

Screen:

Hydraulically actuated screen cradle.

Customizable screen opening size from 40mm to 100mm.

Hex screen and circle screen opening avails for a better size control.

Housing:

Upward-lifted service doors grant access to the front and rear.

All pipelines are well-routed in waste crusher.

Machine body is a thick-walled metal construction.

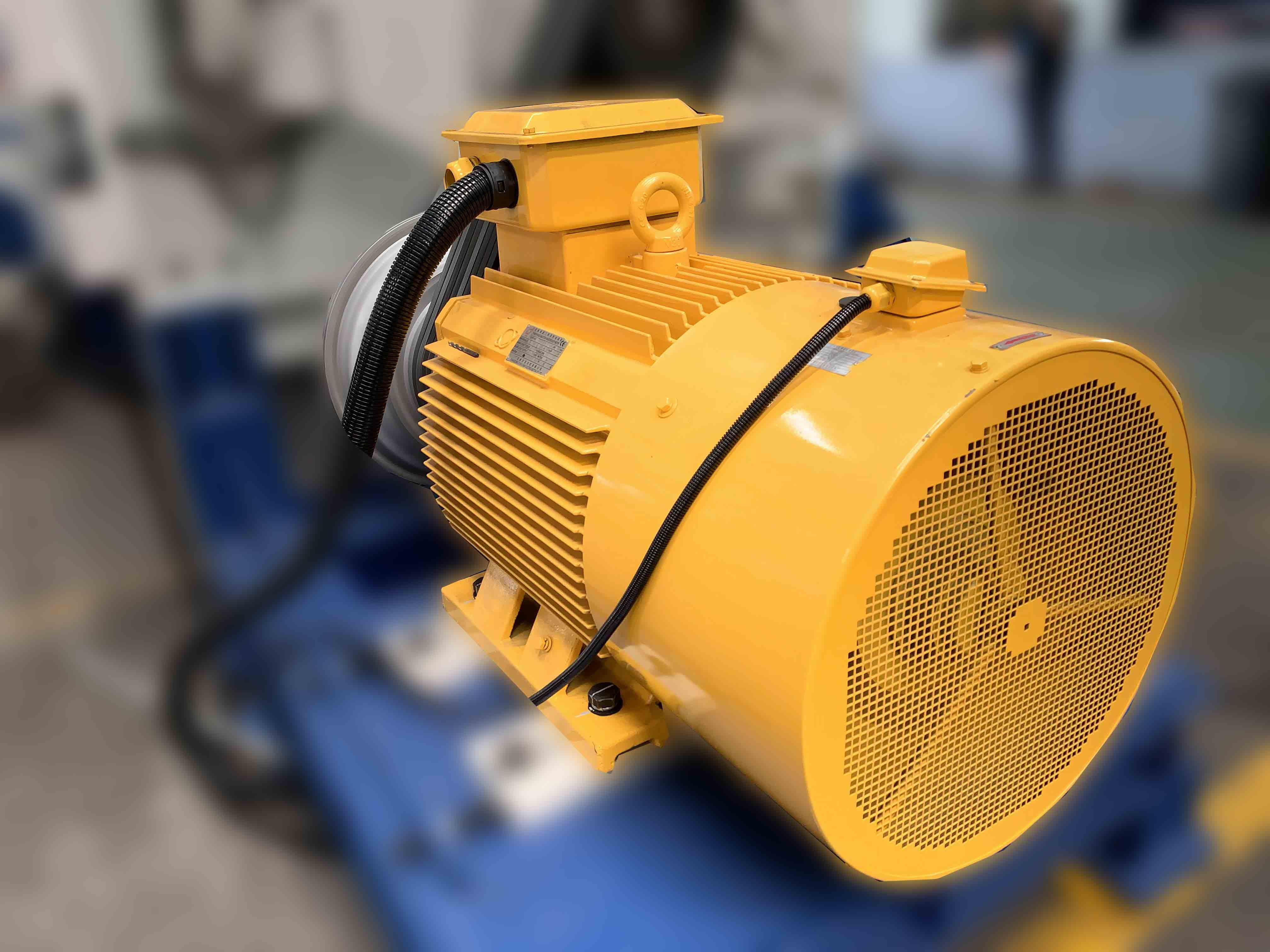

Drive:

High-speed shredding.

In case of overload and shock, a torque-militing clutch disengageas to protect drive unit.

Options of one/dual motors, as well as mechanical/hydraulic/inverter drives.

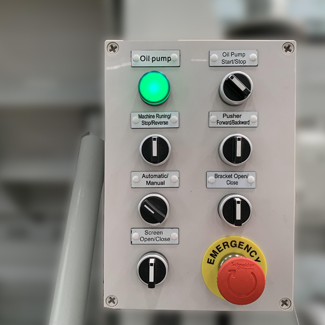

Control System:

Monitors key parameters of waste shredder.

Dynamic load balance for dual drives.

Adds-on: spark detection, dust vaccum, and water-cooling

05 — Specification

Model

PTSW1500

PTSW2000

Dimension(L*W*H)mm

2230*3660*2970

2230*3710*2970

Hopper opening(L*H)mm

1360*1910

1360*2410

Discharge height(mm)

460

460

Rotation diameter(mm)

Φ465

Φ465

Operation length(mm)

1500

2000

Rotation speed(RPM)

80

80

Swing pusher ram(mm)

420

420

Screen hole size(mm)

60

60

Rotated blades number

88

95

Fixed blades number

6

8

Motor power(kw)

110

75+75

Hydraulic power(kw)

11

11

Weight(kg)

12500

15000
