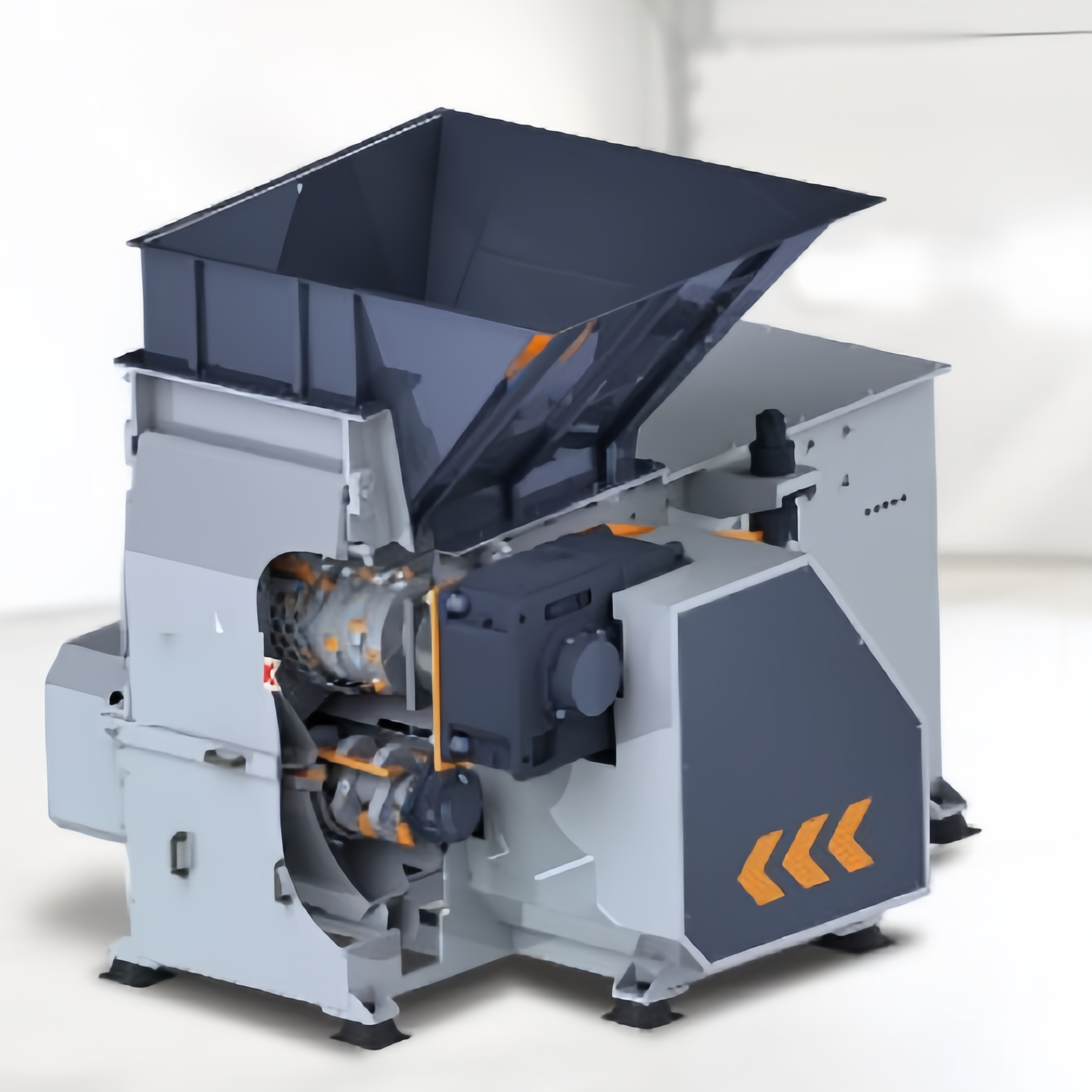

Pipe-lump Shredder-crusher Machine

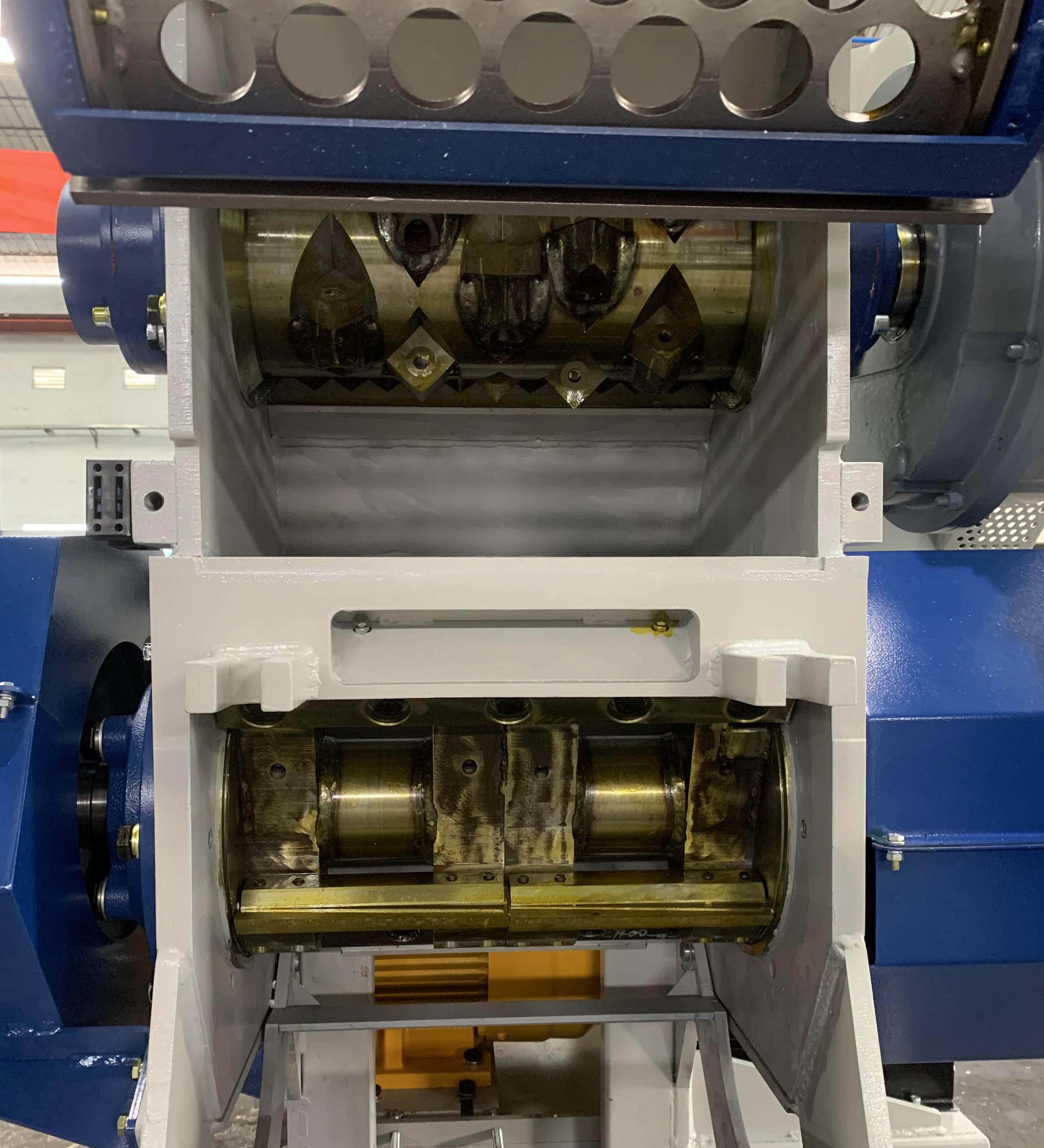

01 — Shredder-Crusher Combined Features

  • Space-saving and investment-minimized, compared to the individual shredder, granulator and conveyor.
  • One-step size reduction to desired final output size.
  • Slanted pusher ram ensures continuous operation & eliminates residual materials.
  • Auto-reverse system re-orients shredder rotor’s direction when motor overload and material jam.
  • Shredder rotor knife adopts DC53 and crusher knife adopts Cr12MoV.
  • Shredder and crusher are individually driven for better control.
  • Main electrical components are trusted brands such as Siemens and Schneider.

03 — Application

  • Plastics rubber lumps
  • Plates
  • Scrap
  • Frames
  • Pipes, PET bottles, etc

04 — Specification

Model PTSC600 PTSC800 PTSC1000
Dimension(L*W*H)mm 1850*1500*1900 2750*2000*2300 3380*2500*2700
Shredder operation length(mm) 1200*1090 1400*1500 1600*1880
Discharge height(mm) 600 800 800
Shredder motor power(kw) 18.5 37 45
Shredder rotation diameter(mm) 220 380 400
Shredder rotation speed(Rpm) 80 60 60
Shredder rotated blades number 27 39 49
Shredder fixed blades number 4 4 4

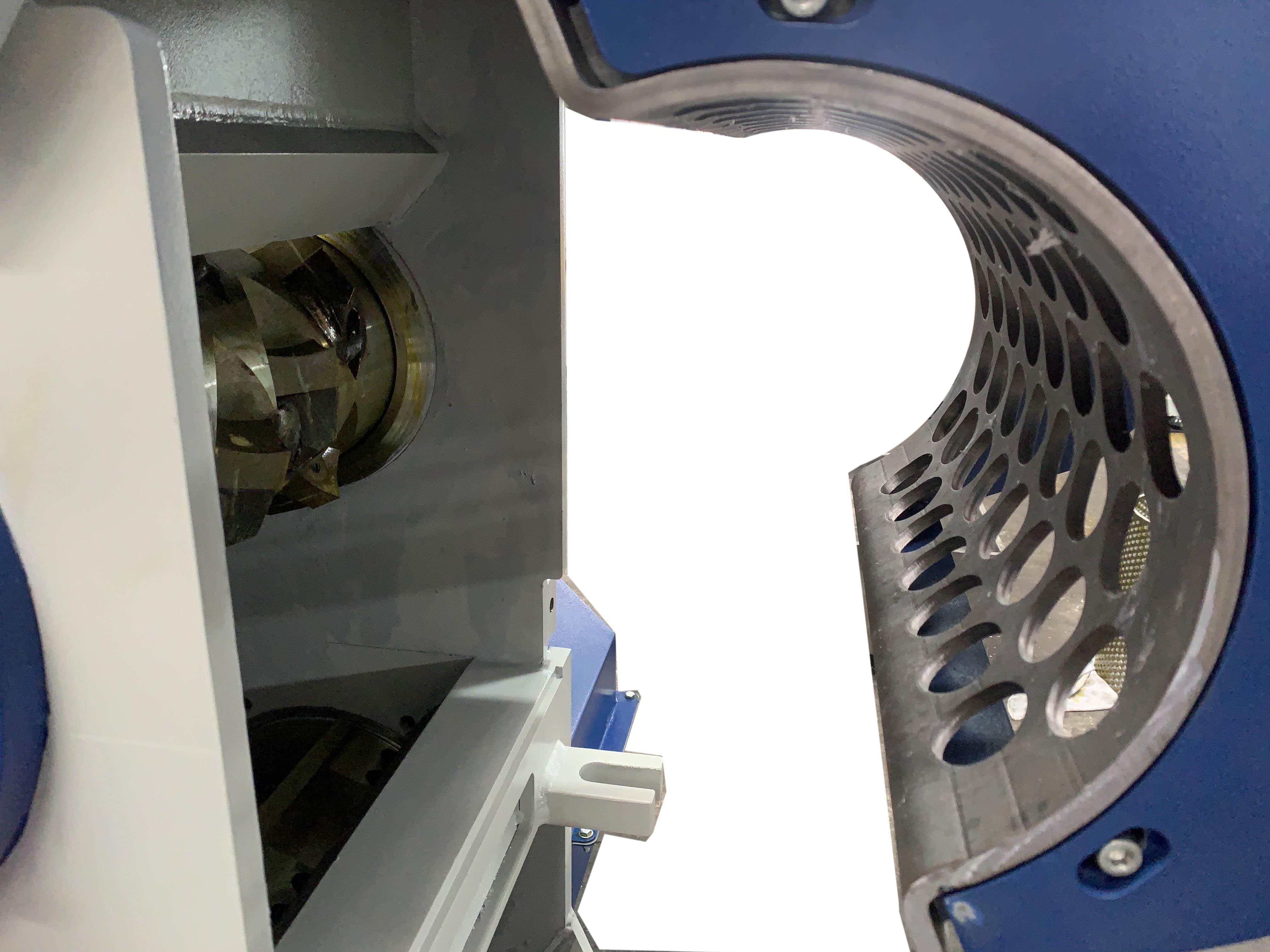

Shredder screen hole size(mm) 40 40 50
Shredder screen number 1 1 1
Hydraulic power(kw) 2.25 3.75 3.75
Crusher motor power(kw) 15 22 30
Crusher rotation diameter(mm) 260 320 410
Crusher rotation speed(Rpm) 580 450 450
Crusher rotated blades number 6 6 6
Crusher fixed blades number 1 1 1
Crusher screen hole size(mm) 12 12 12
Crusher creen number 1 1 1
Weight(kg) 2170 5250 6800
